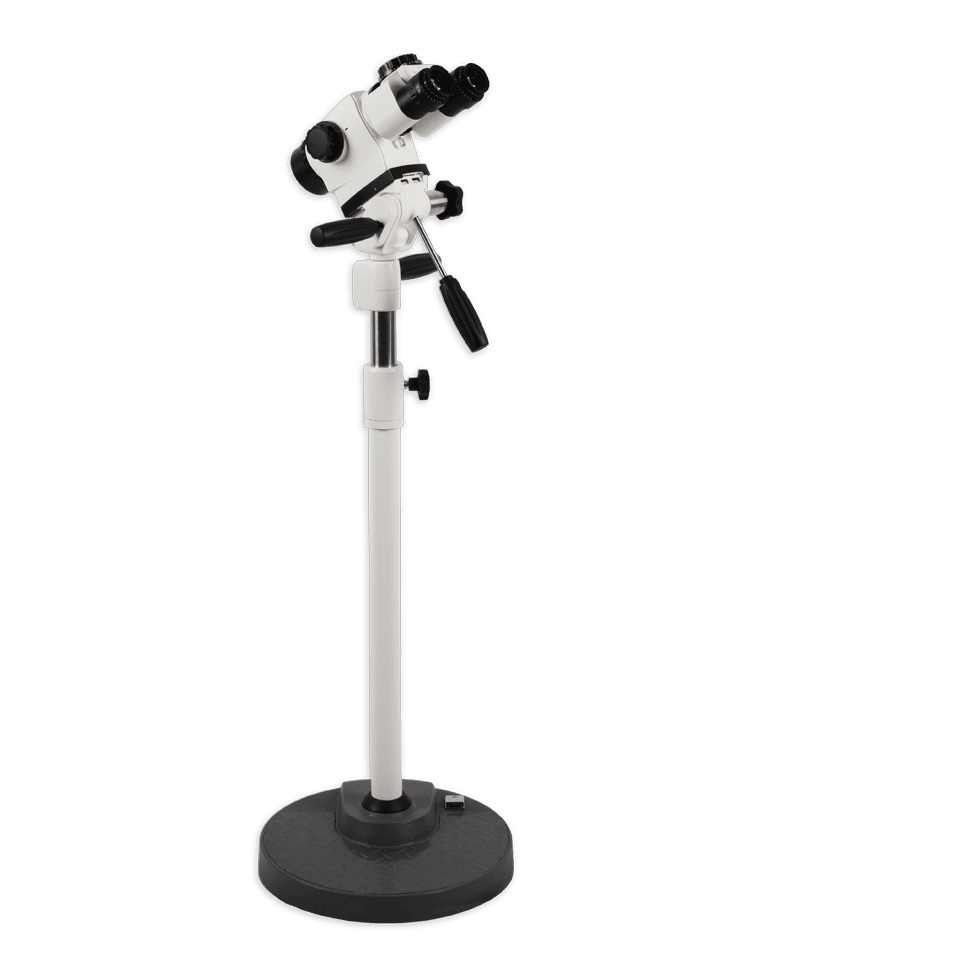

AC-3000

Magnification

Manual 3-step magnification/ Manual 5-step magnification

Objective lens

300mm Objective lens(standard)

250-430mm Variable objective lens(optional)

Binocular

45°binocular/ Straight binocular/0-180°Inclined binocular head with knob of pupillary distance adjustment

Range of interpupillary distance

50mm-75mm

Eyepiece

12.5X/18mm(standard)

10X/21mm, 25X/11mm(optional)

Illumination system

Built-in LED

Color rendering: Ra≥85%

Color temperature: 5700k

Light spot

NoGlare mode/ Blue filter mode/ Green filter mode/ Polarization

Illumination

Illumination up to 60,000LUX with a 300mm fixed focus objective lens

Built-in camera

Built-in 4K camera

Interface

HDMI 1.4 1pc/ USB 2.0 2pc

Resolution

4K (3840*2160)

Storage

Connect external USB flash disk (support FAT32, exFAT and NTFS formats); picture: JPG format; video: MP4 format

Voltage

12V

power

30-45VA

Camera split ratio

2：8

Video resolution

1080P

Picture resolution

8M (3840*2160)

Basic functions

Freeze, photograph, video recording, automatic exposure, white balance, play back and cross curve, sound recording

Image effect

Exposure value, best brightness, gain, red gain, blue gain, saturability, contrast ratio, definition and HDR,detail enhancement, backlight compensation, purple edge removal, black and white mode, parameter locking, parameter setting

System settings

Horizontal flip, vertical flip, show/hide time, show/hide LOGO, eleven languages for option (Chinese, English, German, French, Spanish, Italian, Portuguese, Swedish, Japanese, Russian, Polish), image resolution, system update, restore default, version information
