ALL-CAM2

Surgical Microscope Full-function Camera System

The Era of Pictures & Videos

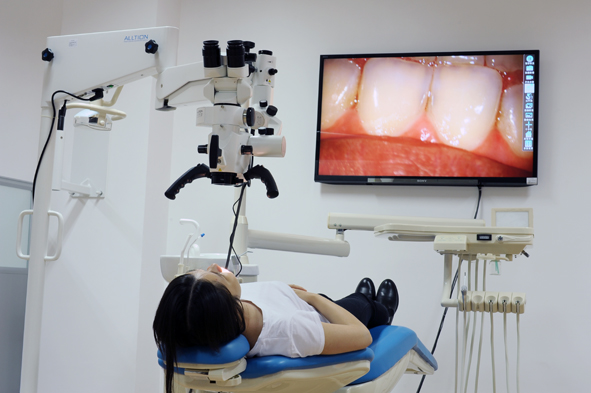

You not only need high-definition displays of surgical examinations, diagnosis, treatment andoperating procedures under microscopes/colposcopes on large screens (and in real time), but also need to record still images and video. You may also need to transmit videos to computersand smart phones to share information. lt allows you to present patients with all the details infull HD format and to explain procedures for better patient communication. Assistants, students and other practitioners can watch the procedures at the same time, enabling teaching orconsultation. Your excellent professional skills also can be presented at meetings or confer-ences.

High-definition photos and videos are essential to medical records, patient records, document cases, and academic reports and papers.

Free Matching

Video camera kit

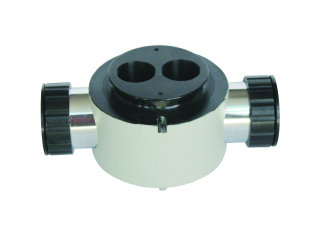

Beam splitter(2:8 or 5:5)

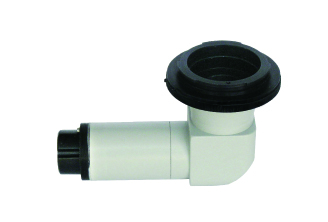

Video adapter

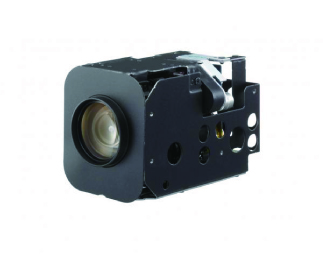

CCD camera
Monitor

DSLR camera kit
Beam splitter(2:8 or 5:5)

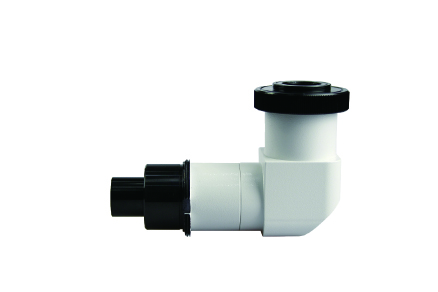

DSLR digital adapter

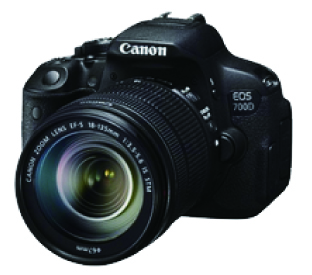

DSLR camera

Camcorder kit
Beam splitter(2:8 or 5:5)
Camcorder adapter

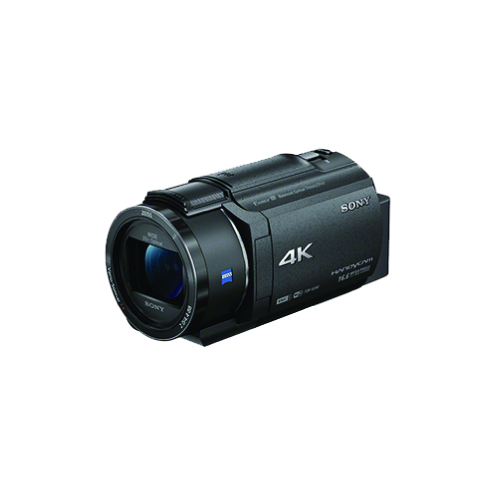

Camcorder

There needed to install a beam splitter, various camera adapters and diferent cameras onto your microscope or colposcope, such as a high-definition CCD camera, digital single lens reflex camera or a Camcorder. However, a beam splitter has two outports atmost, limiting you to only two cameras at a time.

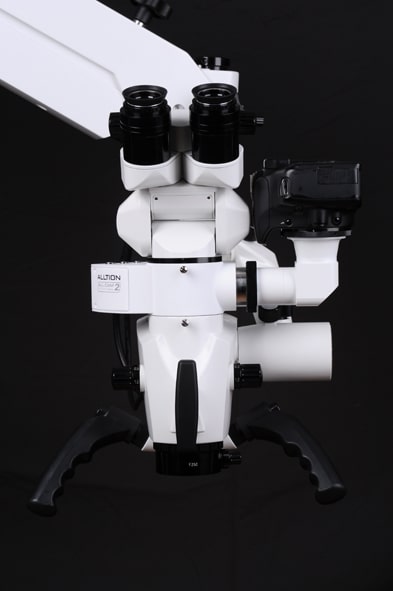

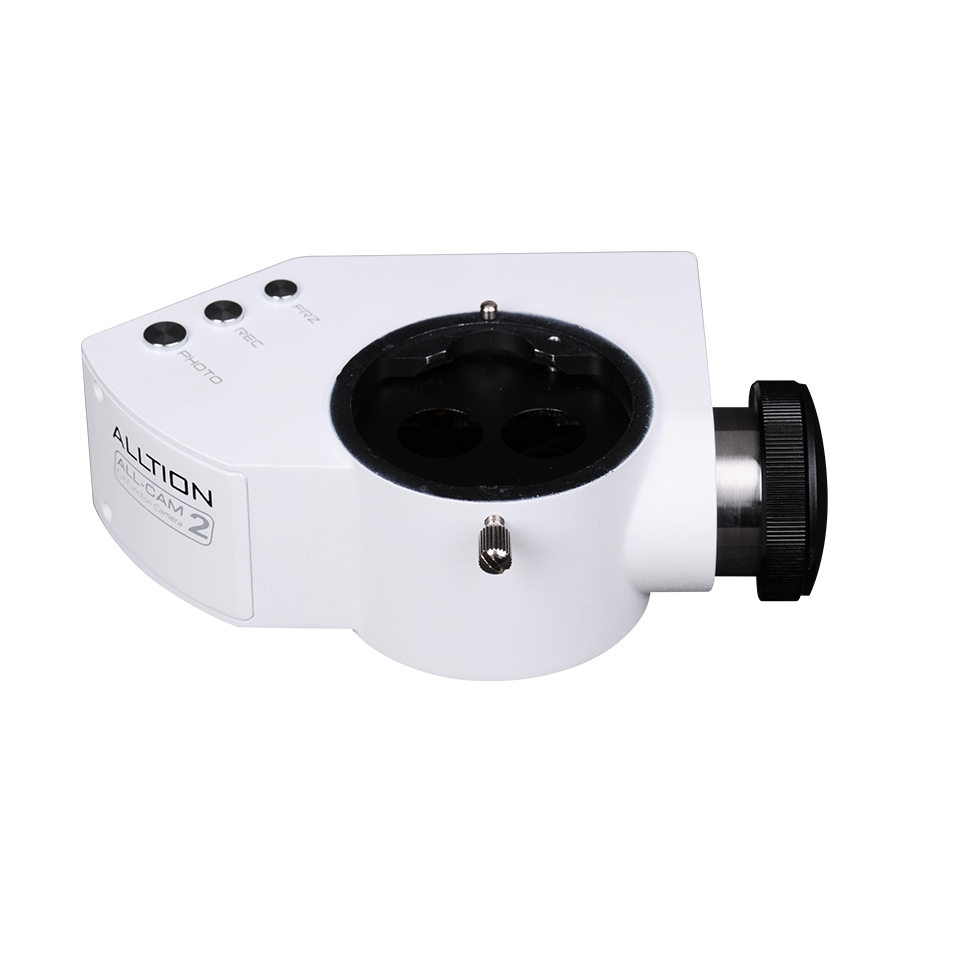

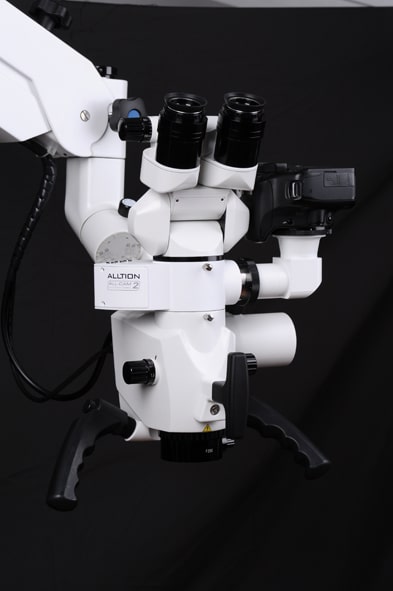

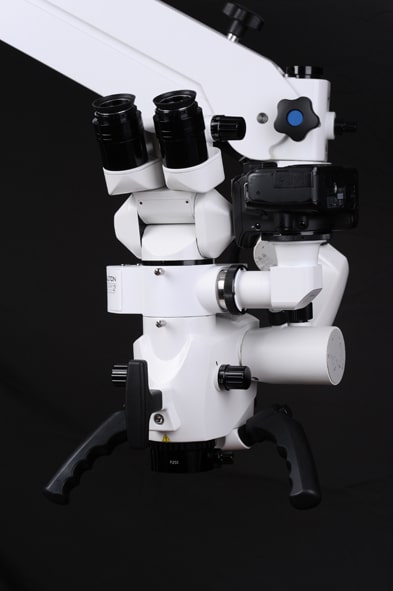

ALL-CAM2 is designed specifically for surgical microscopes and colposcopes and it has the same as a traditional camera, with the added benefit of moreadvanced features:

It applies SONY industrial grade light-sensitive chips, with high resolution, high sensitivity, low noise point and excellent color restoration;

It is specifically designed for the white balance and automatic exposure, optimization algorithm of strong light exposure for surgical microscopes and colposcopes, producing significantly better images than traditional camera systems;

It has the functions of real-time video output, photography, video recording and imagefreezing. A doctor can use the function of image freezing to present the state of an ilinessfor patients at any time so as to make it convenient for doctor-patient communication;

With a built-in 32G SD memory card, it can continuously record for about 10 hours. lt canalso connect to an external memory through USB interface;

ALL-CAM2 is an intelligent mini workstation that integrates almost all functions that youmay use during your work:

Parameters, including color and definition of camera, can be set by the user;

Pictures before and after treatment can be compared;

lmages can be turned upside down and turned to the left or right;

lt can precisely measure the size of a lesion and store data;

Cross curve can be displayed on the screen;

Partially enlarged image;

More functions are available for use.

ALL-CAM2 has many operation modes.

Function	Mouse + TV	Computer / Laptop	Mobile Phone	Camera Button	Wireless Foot Control Panel
Function
Real-time video	√	√	√
Photography	√	√		√	√
Video	√	√		√	√
Freeze	√	√		√
Setting	√	√
Photograph and Video Export	√	√

With its WlFl function, ALL-CAM2 can transmit videos to computers and mobile phones. Photo-graphing, video recording and the settings of the camera parameters can be conducted on computers;

Throuah optional wireless foot pedal remote control or hand-held remote control, you can realize photo, graphing and video recording without the interruption of operation, avoiding unclear pictures caused by shaking;

Through optional wireless video sender, you can conveniently and wirelessly transmit high-definitionvideo to a television or monitor leaving your operation room or clinic more orderly and streamlined.

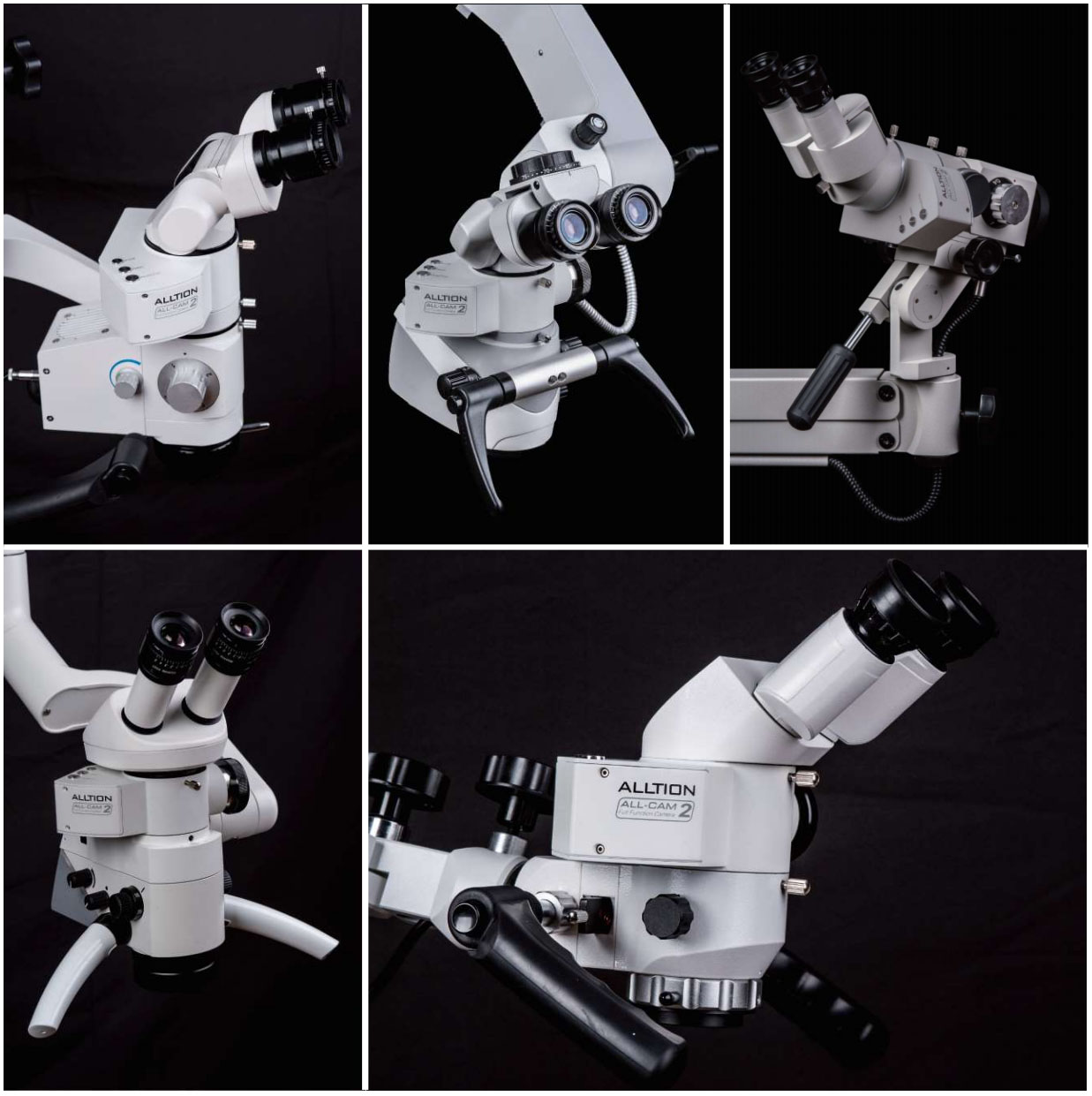

With various types of surgical microscope and colposcope adapters, ALL-CAM2 can be adapted to the main surgical microscopes and colposcopes all over the world. Adapters can also be customized for customers.

Technical Data

Weight	0.7kg
Size	15511060(MM)
Sensor	1/2" SONY high-sensitivity and low-noise CMOS
Resolution	HD1080P 60FPS(16:9)
Storage	Need connect with external U-disk (supports FAT32 and NTFS fommats)
Data Format	Picture: JPG format; Video: MP4 format
WIFI	Support WlFl function, support WlFl image transmission
Voltage	5V
Power	6W
Beam Split Ratio	2:8 (0ptical 5:5)
Video Resolution	1080P
Picture Resolution	2M,5M,8M
Basic Function	Freeze,snap image, video recording, automatic exposure,white balance, limage echo and cross curve
Image Effect	Exposure value, best brightness, gain, red gain, blue gain, saturation,contrast,sharpness, ALC, HDR, customize user parameters
Advanced Functions	Horizontal flip, vertical flip, enlarge, reduce, AOl, image Contrast
System Settings	Auto Name/Manu Name, Time Show/Time Hide, Show LOGO/Hide LOGO, Built-in WIFI/external WIFI, Language, Image resolution, Naming settings, System Update, Version Information
PC Client	WINDOW XP, WIN7, WIN8 and WIN10
Mobile Client	Android system, lOS system
