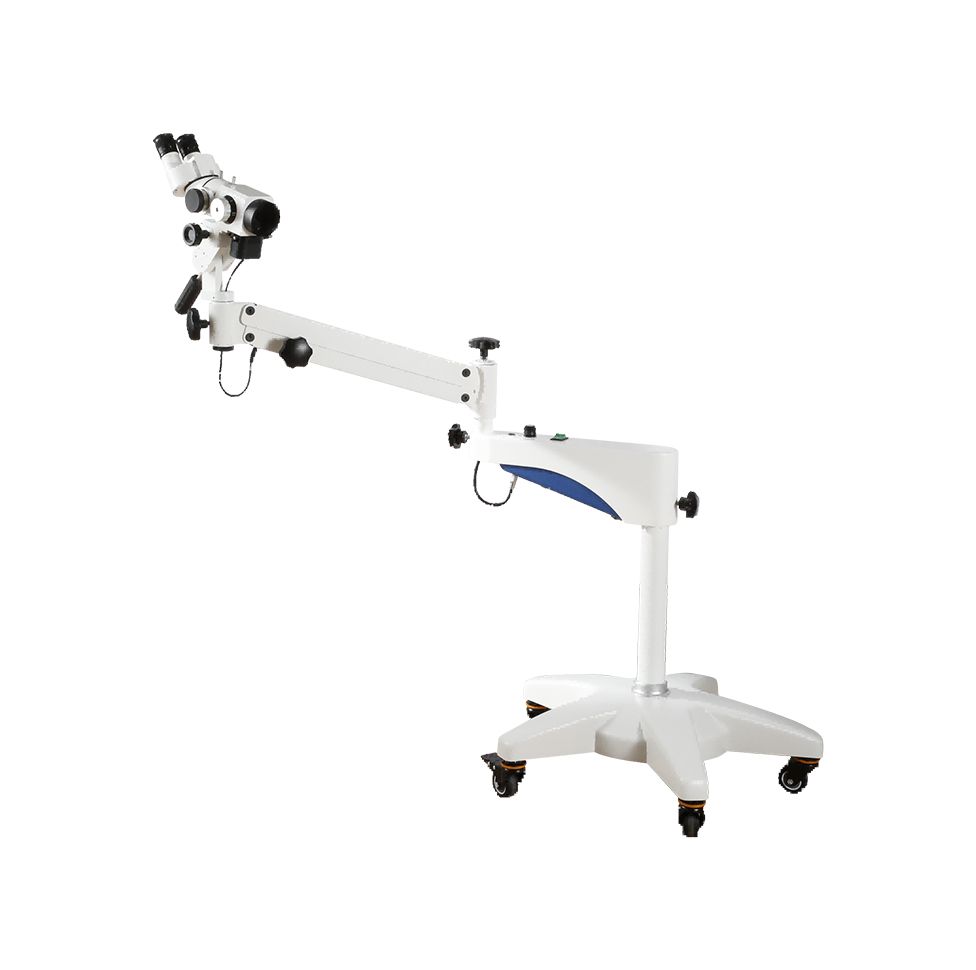

YDJ-II

YDJ series colposcopes are the precise optical instruments specializing in gynecology examination and diagnose. Vagina lesion could be observed clearly which could not be seen by naked eye through the instruments because of its magnification. It improved the precision of the diagnose. Clear image, wide field, even illumination, and convenient usage are the characteristic of YDJ series colposcopes. It is the necessary instruments for gynecology examination.

FEATURES AND BENEFITS

45°inclined binocular tube

16X wide field eyepiece

Smooth turret 5-step magnification pod

Working distance 300mm

Total magnification 2.7X-21.7X

Field of View diameter :11mm-88mm

Green and blue filer selected by a lever

Optical magnification/different objective combination provided

The top 10W Coaxial LED illumination with brightness adjustment

The Illumination is >25,000Lux with 300mm large objective lens, and the biggest Illumination is 30,000Lux

LED life time is over 50,000 hours

LED illumination is lower energy consumption, longer lifespan, safer, more dependable than normal halogen illumination

Fine focusing distance by adjustment handle is 20mm for YDJ-II & 60mm for YDJ-II-1

DC12V output on the instruments and supply the power for CCD camera
