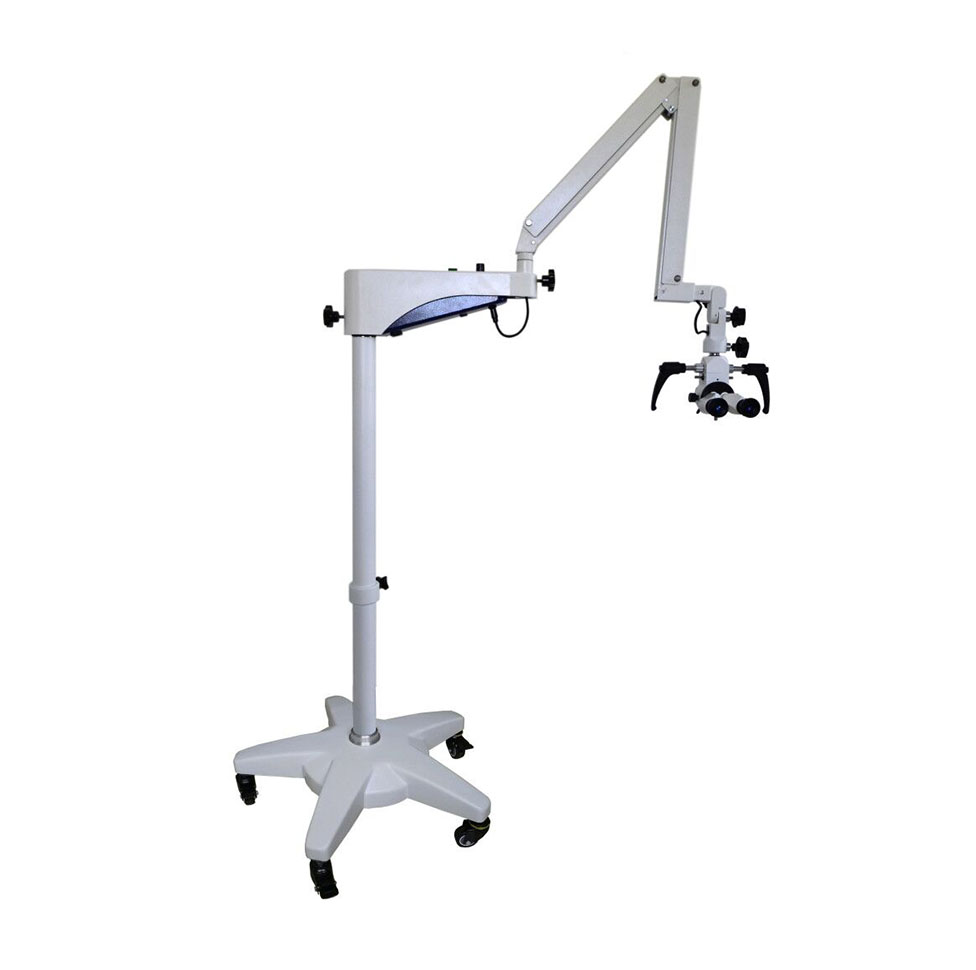

YSX-101

ALLTION is proud to offer YSX series of operation microscopes.Precise structure,new type of appearance and LED illumination system,offer you excellent parfocal,large field view,precise and clear three dimensional images.YSX series of operation microscopes have different working distance and magnification and suitable for the department of ophthalmology, stomatology,gynaecology,ENT and surgery.

FEATURES/SPECIFICATIONS

*YSX-101 LED:Straight binocular head/YSX-102:45°inclined binocular head *1500mm Super long pantograph arm offers wider operation space

*Different working distance objectives:f=200mm 、f=250mm *Smooth turret 3-step magnification pod

*Field diameter:7.88mm-81mm *Magnification:2.4X-12X

*Green and blue filter selected by a lever

**Optional magnification/different objective combination provided

*The top 10W LED illumination *20,000 hours LED lifespan

*50,000 LUX object illumination

**LED is lower energy consumption,longer lifespan,safer,more dependable than normal halogen illumination.

*Power supply voltage:90V/60Hz~250V/50Hz
