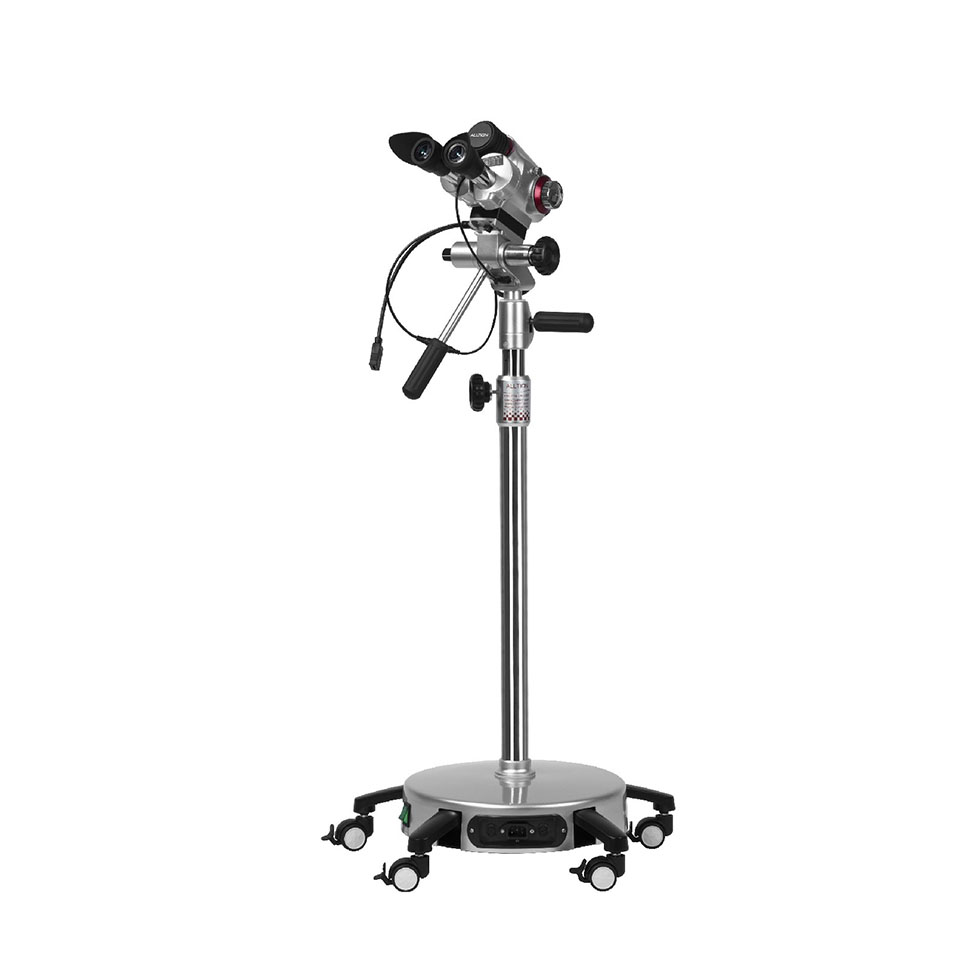

AC-2000 Colposcope

FEATURES AND BENEFITS

Apochromatic Optic Design

3-Step Magnification and/or Single Magnification LED IIlumination for Long Life&Low Cost

1080P FULL HD Real-time output module

Two Optical Circles for Quick Measuring Size of Tissue Integrated Green Filter

Compact,Light Weight Base with Wheels for Easily Maneuver

Ergonomic Design for Long Time Precision Operation Comfortably Completely Assembled and Ready to Use

SPECIFICATION ALLTION AC-2000 SERIES COLPOSCOPES:

1.Total magnification 3.75x,7.5x,15x for 3-step models

and 7.5x for single magnification models

2.300mm focal length

3.Field of View:79mm,39mm,19mm dia.for 3-step magnification

models and 39mm for single magnification models

4.Depth of Field:4.5mm,1.13mm,0.76mm for 3-step magnification models and 1.13mm for single magnification models

5.Light intensity:>30,000 LUX

6.Individually adjustable eyepiece 16.7x

7.Right eyepiece with built-in two circles for you to measure the size of the problem you see.

8.Built-in rheostat for brightness adjustment

9.1080P FULL HD Real-time output module

10.User-selectable built-in green filter for enhanced contrast

11.LED bulb is easily changeable.

12.Working Height:950mm to 1250mm

13.Fine focus adjustment Handles

14.Two(Gross/Fine)height adjustment Handles

15.Unit is completely assembled and ready for use once power is on

16.Main Power Supply:100V to 240Vltem and specification subject to change,

please contact Alltion for current production information.
